Li-Pack Series: Horizontal Packaging Machines

The Li-Pack series is Gallant Engineering’s advanced line of horizontal packaging machines, engineered to meet diverse production needs with both single and dual lane configurations. At the heart of the series is the Li-Pack Dual Lane, a USA-patented technology that mirrors stations on either side of a central indexing assembly — enabling simultaneous, synchronized packaging on two lanes within a single machine footprint. This innovative design significantly boosts throughput while optimizing floor space, delivering an exceptional cost-to-output ratio that sets a new benchmark in packaging efficiency and value.

Pouch Details For This Equipment

Equipment	Min Width	Max Width	Min Length	Max Length	Output/Min	Auto-Changeover for pouch width
Li-Pack 360	4″ (101.6mm)	9.75″ (247.6mm)	5.9″ (150mm)	13.7″ (350mm)	upto 50	YES
Li-Pack 540	6″ (152.4mm)	14″ (355.6mm)	7.8″ (200mm)	17.7″ (450mm)	upto 30	YES
Li-Pack 360 D	4″ (101.6mm)	9.75″ (247.6mm)	5.9″ (150mm)	13.7″ (350mm)	upto 100	YES
Li-Pack 540 D	6″ (152.4mm)	14″ (355.6mm)	7.8″ (200mm)	17.7″ (450mm)	upto 60	YES

Complete Equipment Details

Equipment	Length	Width	Lane	Bags/Min
Li-Pack 360	196.85″ (5000mm)	55.11″ (1400mm)	Single	upto 45
Li-Pack 540	236.22″ (6000mm)	55.11″ (1400mm)	Single	upto 30
Li-Pack 360 D	196.85″ (5000mm)	70.86″ (1800mm)	Dual	upto 90
Li-Pack 540 D	236.22″ (6000mm)	70.86″ (1800mm)	Dual	upto 60

Key Advantages

Precise & Efficient Packaging

Ensures high-accuracy filling and sealing for premade pouch packaging lines.

Patent-Pending Technology

Incorporates Gallant’s latest innovations for superior performance and reliability.

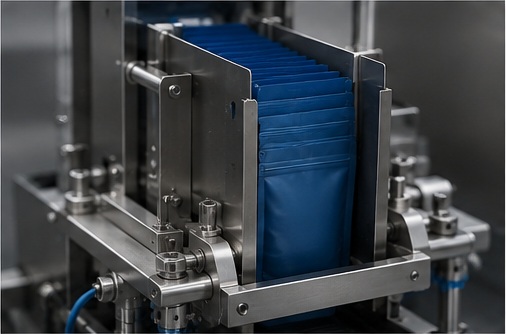

Unique Pouch-Picking Assembly

Supports vertical pouch stacking for space-saving, smooth, and efficient pouch handling.

Auto Changeover

Switch between pouch sizes easily with the push of a button on the user-friendly HMI.

High Speed Operation

Li-Pack 360 D achieves up to 5,400 pouches per hour, maximizing line productivity.

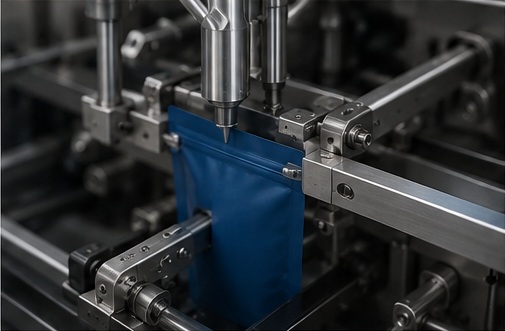

Precision Indexing

Switch between pouch sizes easily with the push of a button on the user-friendly HMI.

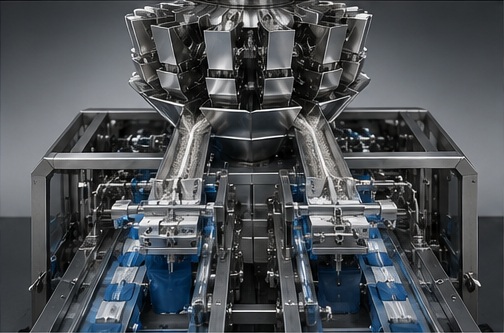

One-Filler, Two-Lanes

A single multi-head scale feeds both lanes via the diverter assembly, improving line efficiency.

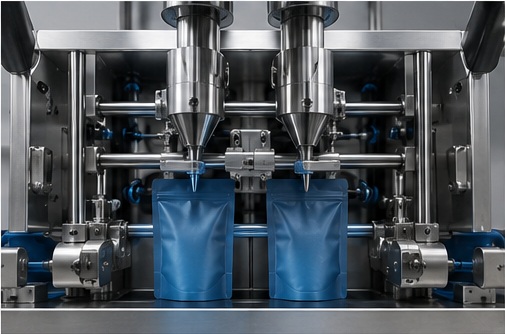

Reliable Pouch Opening

Servo-operated fork assembly ensures smooth pouch opening and precise filler nozzle insertion.

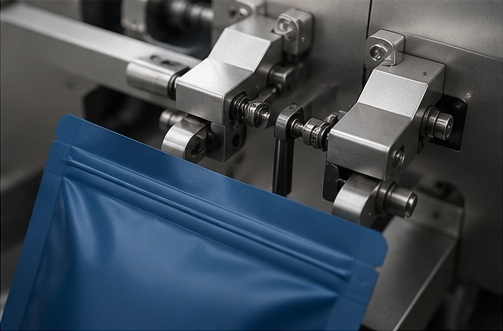

Superior Zipper Opener

Mechanical fingers reliably open zippers for consistent packaging quality.
