Choose the Right Packaging Solution for Your Throughput Needs

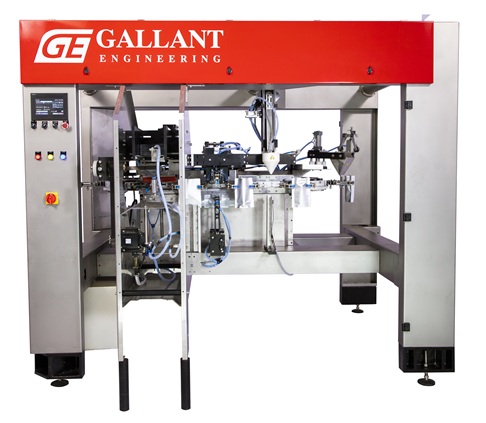

Gallant offers two advanced packaging series: RT-Pack, a single-lane racetrack design built for entry-level to small/moderate operations, and Li-Pack, a horizontal assembly available in single or dual-lane configurations for duplex-level speed. Scalable solutions to match your required output and automation preferences.

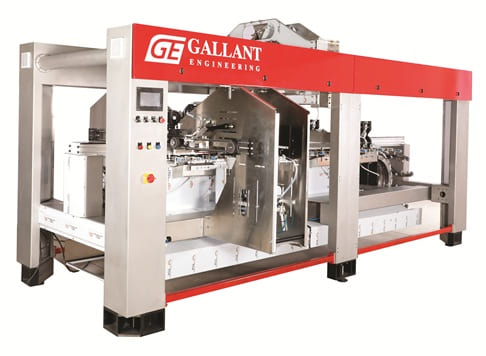

Li- Pack
Comparison of the standard 8 station packaging machine in RT-Pack and Li- Pack series
| Features | RT-Pack | Li-Pack |
|---|---|---|
|
Machine Design |
Racetrack-style indexing system similar to standard rotary machines |
Patented dual-lane technology with straight horizontal indexing and mirrored assemblies |
|
Technology Positioning |
Part of RT-Pack series (compact design) |
Part of Li-Pack dual-lane innovation, comparable to duplex rotary machines |
|
Output Capacity |
20–45 pouches/min (depending on filling speed) |
50–80 pouches/min (nearly 2× higher output) |
|
HMI (Control Interface) |
Single HMI panel |
Two HMI panels (mirrored for both sides) |
|
Operation Style |
Single-lane operation |
Simultaneous dual-lane operation |
|
Machine Dimensions (L × W × H) |
2.5 m × 1.8 m × 2.2 m |
2.56 m × 1.9 m × 2.2 m |
|
Best Suited For |
Moderate production requirements with compact footprint |
High-volume production with maximum efficiency |
|
Pouch width changeover for different SKUs |
Manually up to 20 to 30 minutes |
Automatically in few seconds with a touch of a button on the HMI |
Key Features For All Our Machines

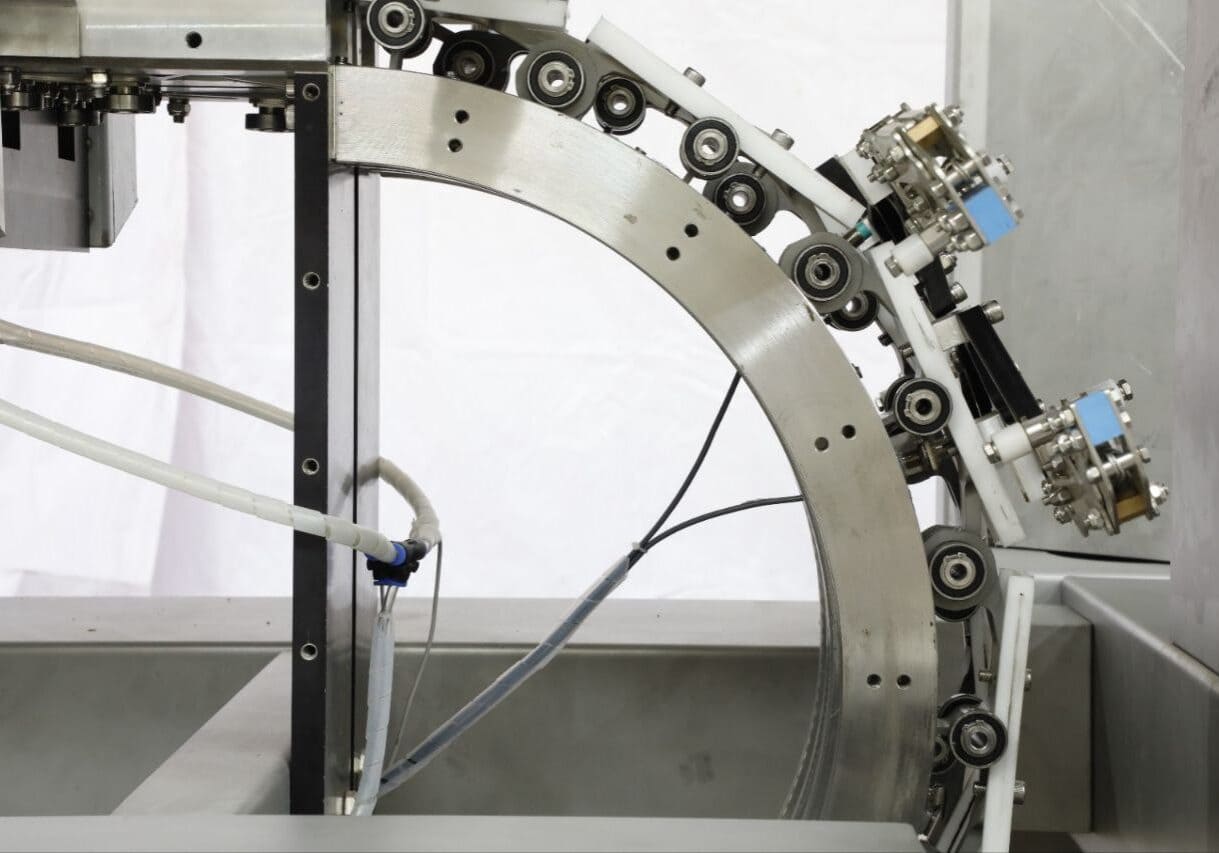

Indexing Mechanism
Our custom, sealed-for-life chain eliminates stretch and wear, ensuring precise indexing — for the life of the machine.

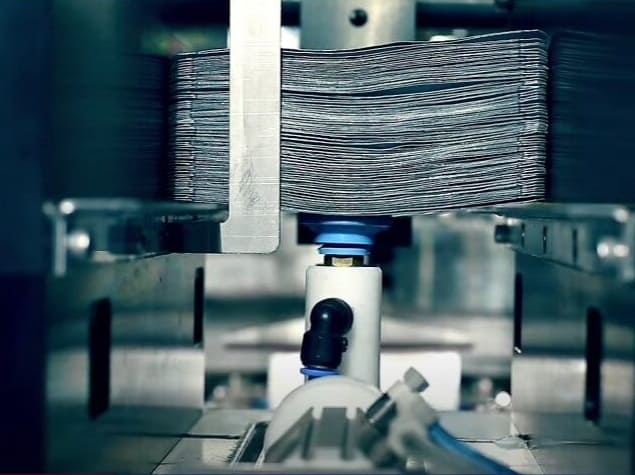

Pouch-Picking Assembly
A simple, efficient design for seamless pouch pick-up and opening — featuring unique vertical stacking that's more space-efficient and effective than traditional staggered horizontal layouts.
Stainless Steel Frame
Heavy-duty, shot-blasted stainless steel frame with all-side access, integrated electrical panels, and HMI — built for durability, easy cleaning, and streamlined operation.

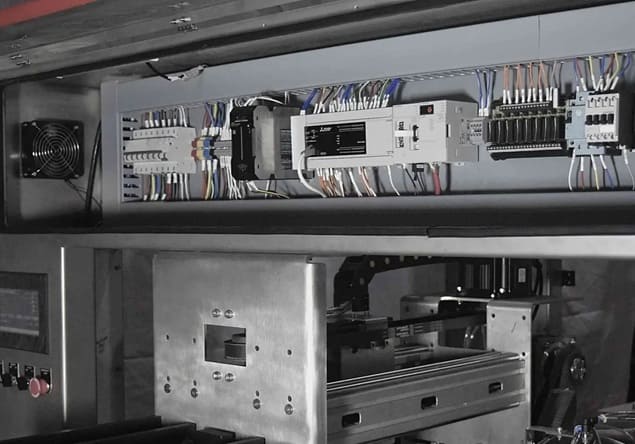

Concealed Electrical Panel
Concealed, top-mounted electrical panels keep components protected and organized while ensuring easy access for troubleshooting, maintenance, and minimal downtime.

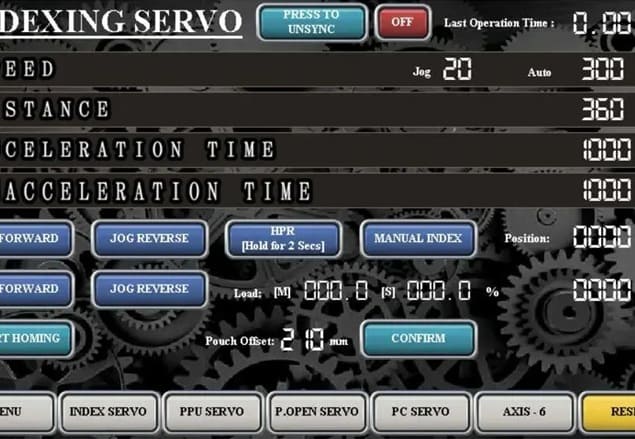

User-Friendly HMI
Powered by a Mitsubishi HMI, the Li-Pack Series offers reliable, intuitive control for efficient, smooth packaging line performance.

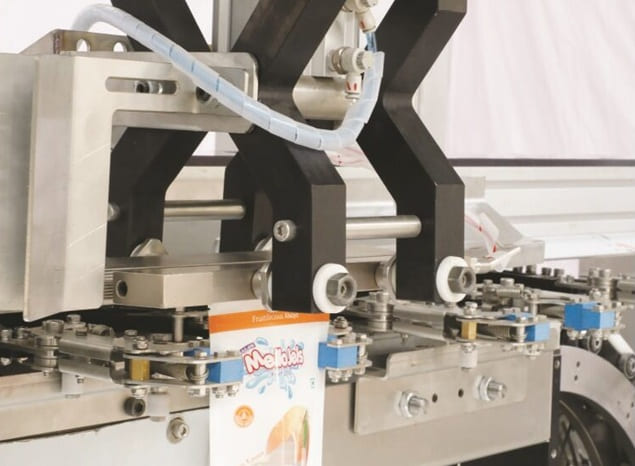

Sealing Station
Standard pneumatic heat-sealing delivers consistent, high-quality results, with optional ultrasonic or servo-operated systems available for added precision and flexibility.
